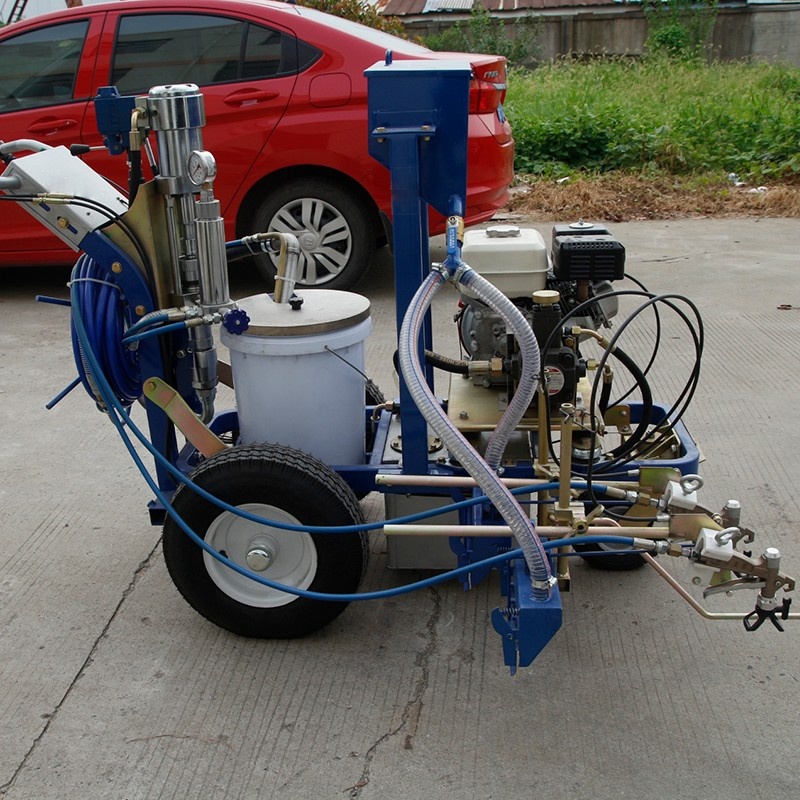

SW-5A Cold Paint Road Marking Machine

描述

Features:

Easy operation
High efficiency line marking
Long service life

Specification:

Model	SW-5A	SW-5B
Dimension	175010501340 mm	115010001050 mm
Weight	225 kg	155 kg
Engine	9 HP gasoline engine	5.5 HP gasoline engine
Pump and Control Method	auto-shuttle plunger pump	auto-shuttle plunger pump
Working Pressure	10-18 Mpa	10-18 Mpa
Marking Width	50-500 mm	50-500 mm
Marking Thickness	0.2-0.6 mm	0.2-0.6 mm
Marking Speed	13km/h	13km/h
Marking Method	high pressure airless spraying	high pressure airless spraying
Spraying Flow Rate	18 L/min	6 L/min

Parts:

Gasoline engine Hydraulic pump

Gasoline engine: Honda 5.5HP air-cooled gasoline engine.
Hydraulic pump: Generate stable pressure to spray the paint.

Electromagnetic valve Paint filter

Electromagnetic-valve: control working of hydraulic pump.
Paint filter: Filter impurities in the paint before spraying.

Spray guns Paint pail position

Spray guns: Fixed hand spray guns to spray paint in fan-shaped.
Paint pail position: Place to position paint pail.

Working On-site:
