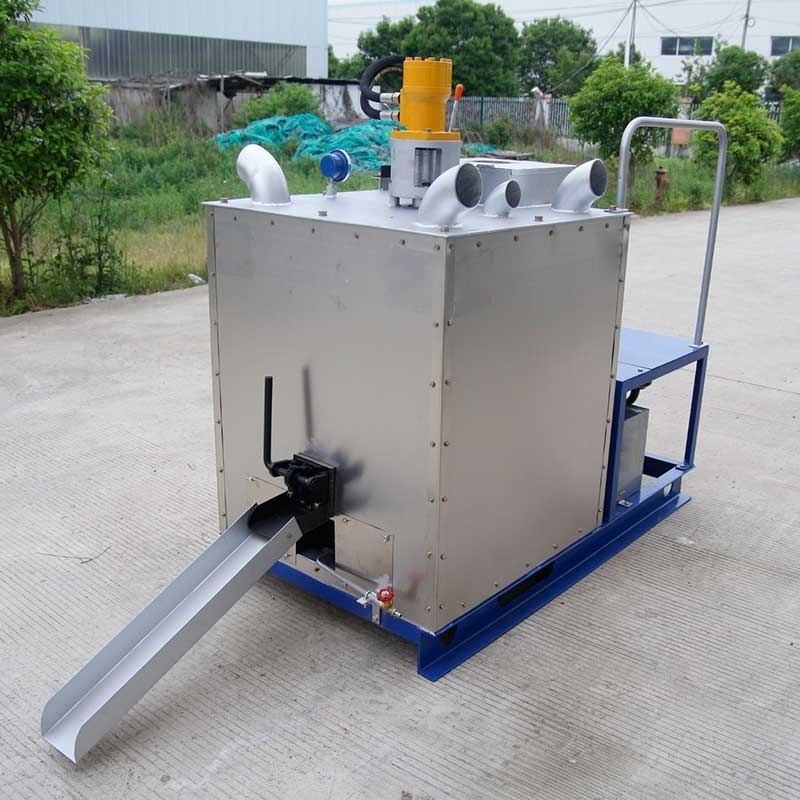

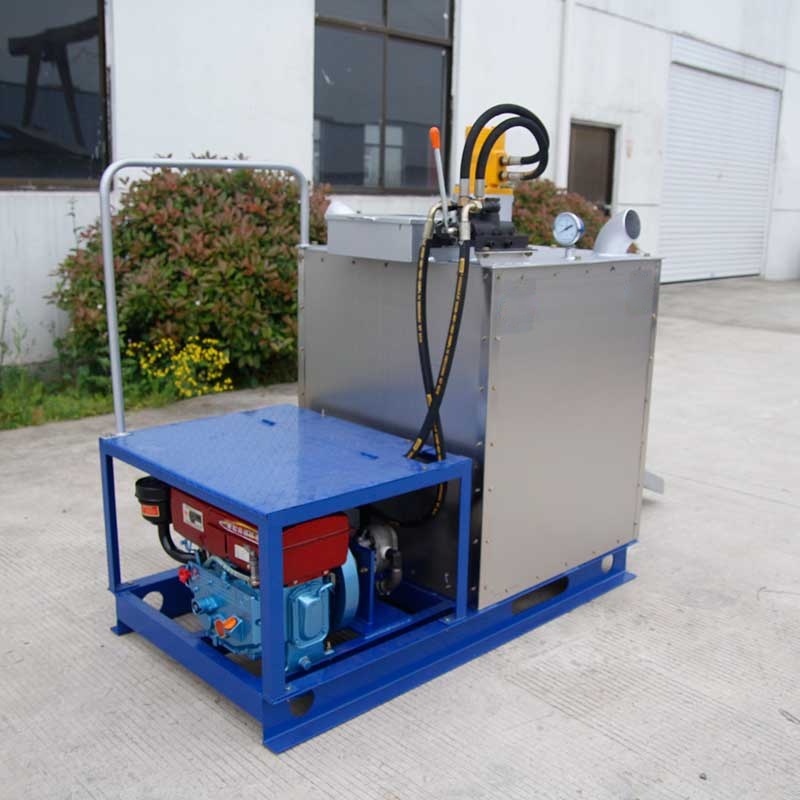

SW-4A-600 Single Tank Thermoplastic Pre-heater

描述

Features:

1. Suitable for small marking projects.
2. Short heating time: 15 to 20 minutes can fully heat a tank of paint.

Specification:

Model	SW-4A-600
Tank Quantity	Single Tank
Size (L×W×H)	17909101580 mm
Net Weight	600 kg
Melting Temperature	180℃ to 220℃
Diesel Engine	8P Electric-started water cooling engine
Hydraulic Oil Tank Capacity	40L
Thermal Insulation Layer	4mm thickness steel plate, 5cm thickness insulation cotton and 1mm thickness stainless steel
Paint Tank Bottom Thickness	6mm
Heating System	Liquefied petroleum gas (natural gas), adopt energy-efficient burner
Rotating Speed of Stirring Device	20-100r/min.
Hydraulic System Pressure	5 Mpa
Working Pressure	4-5 Mpa

Parts:

Stirring device Burner

Stirring device: it stirs the paint to ensure that paint in the preheater is evenly heated.
Burner: Heating the thermoplastic paint with fuel.

Hydraulic motor Multi-way valve

Hydraulic motor: it controls the pressure of hydraulic.
Multitandem valve: it controls the rotation direction of stirrer.
