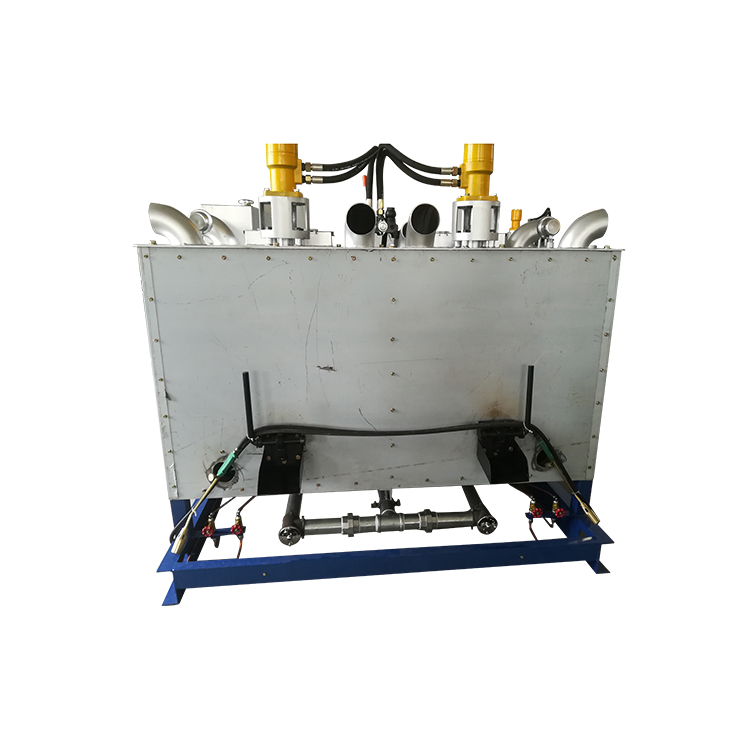

SW-4A-1200 Thermoplastic Double Tank Preheater

Pre-heater:

现在联系 Add Inquiry

描述

Features:

1. Suitable for large-scale marking projects.
2. Short heating time: 15 to 20 minutes can fully heat a tank of paint.

Specification:

Model	SW-4A-1200	SW-4A-800
Tank Quantity	Double Tanks	Double Tanks
Size (L×W×H)	180017001580 mm	176015401610 mm
Net Weight	1020kg	925kg
Heating Temperature	180℃-220℃
Diesel Engine	15P Electric-started water cooling engine
Hydraulic Oil Tank Capacity	70L
Thermal Insulation Layer	4mm thickness steel plate, 5cm thickness insulation cotton and 1mm thickness stainless steel
Paint Tank Bottom Thickness	6mm
Heating System	Liquefied petroleum gas (natural gas), adopt energy-efficient burner (Direct injection Stove)
Rotating Speed of Stirring Device	20-100r/min.
Hydraulic System Pressure	5 Mpa
Working Pressure	4-5 Mpa

Parts:

Stirring Device Burner

Stirring device: it stirs the paint to ensure that paint in the preheater is evenly heated during the heating process going on in the pre-heater.
Burner: Heating the thermoplastic paint tank with fuel.

Hydraulic motor Multi-way valve

Hydraulic motor: It controls the pressure of hydraulic.
Multi-way valve: It controls the rotation direction of stirrer.

Working On-site:

Packing:
