SW-13A Driving Type Road Marking Machine
  • Automatic Road Marking Machine: Road Marking Machine
描述

Features:

1.Ideal machine for medium-sized and small marking jobs in urban areas and road.

2.The screeding structure makes the markings straight and beautiful.

3.Easily operative to ensure the marking speed and quality.

4.Dual-use machine,also can change marking shoe for zebra crossing marking.



Specification:

No

Item

Specifications

1

Engine

37kw diesel engine

2

Heating mode

Liquefied gas fuel heating or conducting oil heating or automatic temperature control heating

3

Marking Mode

Equipped with one extrusion marking shoe

4

Standard Configuration

150mm Marking shoe

5

Marking Shoe=Line Width

100/200/250/300mm (Optional)

6

Marking thickness

1.0-2.0mm(adjustable)

7

Paint Tank

325L

8

Glass Beads Bin

120L

9

Air Compressor

0.6m3/min

10

Control system

Digital intelligent control

11

Size and Weight

5100*2450*2300mm 3500 kg

 HOME ꄲ Product classification results page  ꄲ  Road Marking Products  ꄲ  SW-13A Driving Type Road Marking Machine

001
004
003
002
ꁆ
ꁇ

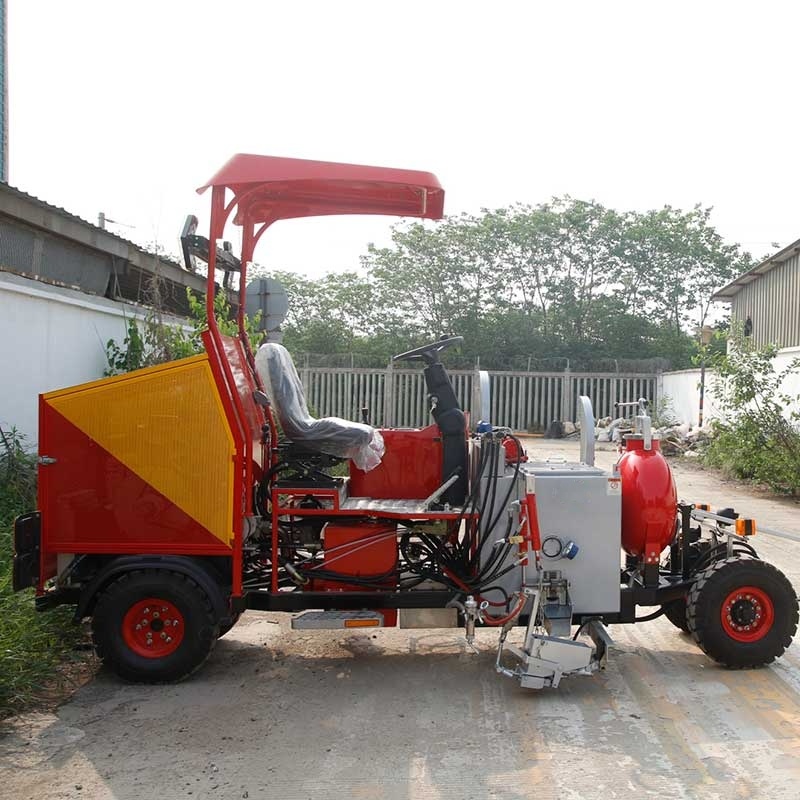

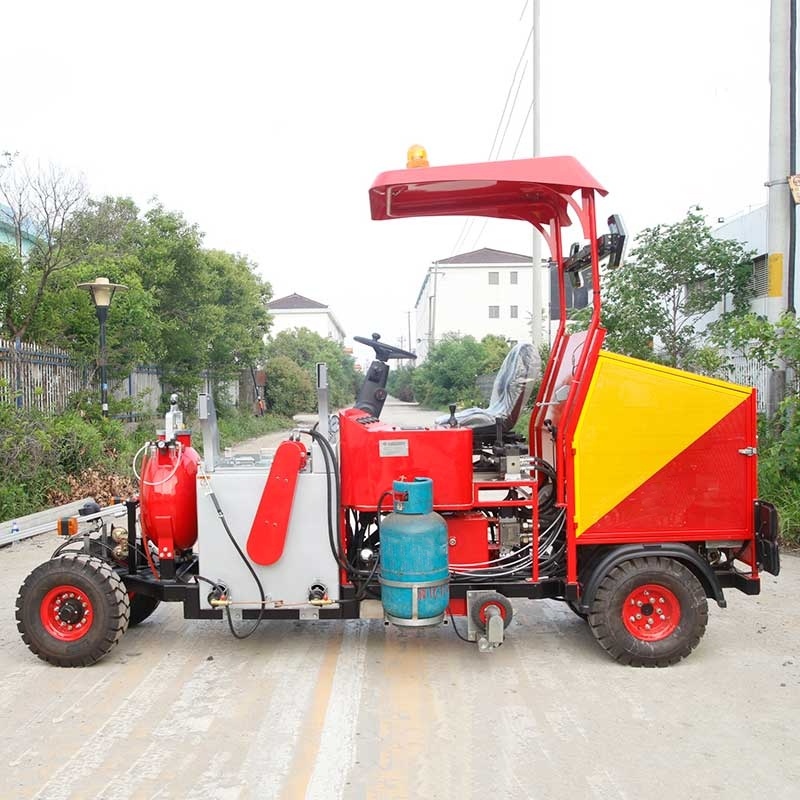

SW-13A Driving Type Road Marking Machine

The automatic thermoplastic road marking machine is a thermoplastic plastic marking machine that runs fully automatically. Large-capacity thermoplastic paint tanks and glass bead tanks are specially designed for long-distance road marking projects. Reliable hydraulic drive system and powerful engine can greatly improve marking efficiency.

Features:

1.Ideal machine for medium-sized and small marking jobs in urban areas and road.

2.The screeding structure makes the markings straight and beautiful.

3.Easily operative to ensure the marking speed and quality.

4.Dual-use machine,also can change marking shoe for zebra crossing marking.



Specification:

No

Item

Specifications

1

Engine

37kw diesel engine

2

Heating mode

Liquefied gas fuel heating or conducting oil heating or automatic temperature control heating

3

Marking Mode

Equipped with one extrusion marking shoe

4

Standard Configuration

150mm Marking shoe

5

Marking Shoe=Line Width

100/200/250/300mm (Optional)

6

Marking thickness

1.0-2.0mm(adjustable)

7

Paint Tank

325L

8

Glass Beads Bin

120L

9

Air Compressor

0.6m3/min

10

Control system

Digital intelligent control

11

Size and Weight

5100*2450*2300mm 3500 kg



Video:

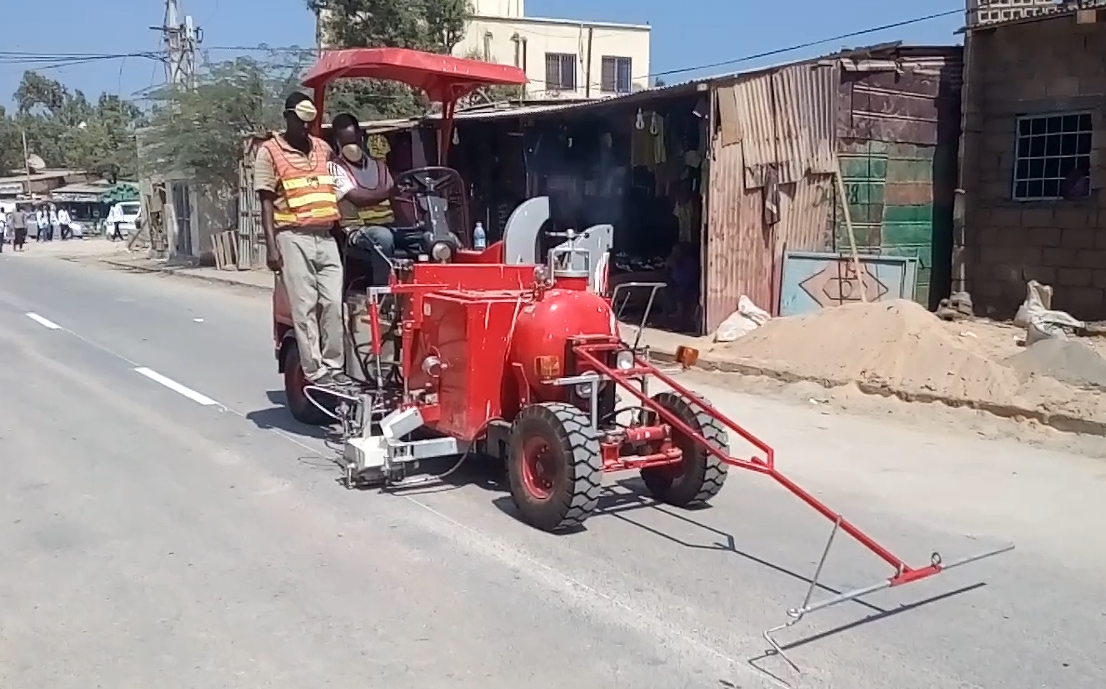

Working On-site:
