Customzed output electric refractory spraying equipment to Oman
Please copy the link to the product website for more products and information
Our website: www.gaodetec.net
Description：

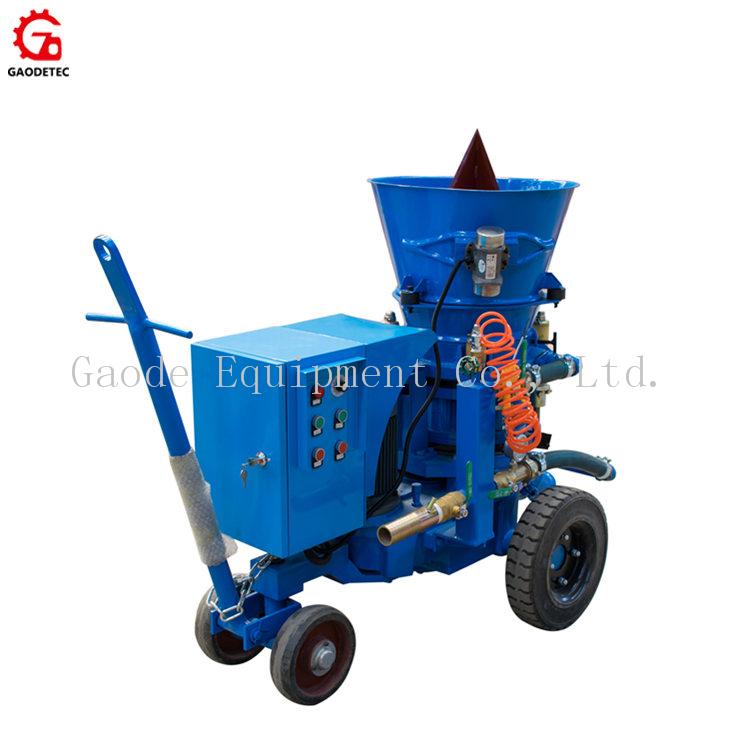

GZ-3ER is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.
With this GZ-3ER, you can get low dust and high performance spraying flow in nozzle.
Technical sheet：
|
Specification (with Electric motor drive):
|
|
Rated Output
|
1-3m3 /h
|
|
Max. Horizontal Conveying Distance
|
100m
|
|
Max. Aggregate Size
|
Dia.10 mm
|
|
Conveying Hose Inner Diameter
|
38mm
|
|
Operating air Pressure
|
0.2-0.4MPa(29-58PSI)
|
|
Air Consumption
|
5~6m3/min(180-215CFM)
|
|
Motor Power
|
4kw
|
|
Voltage
|
3 phase,380V,50Hz
|
|
Material Charging Height
|
1.1m
|
|
Rotor Speed
|
13.2r/min
|
|
Overall Dimension(L×W×H)
|
1130*540*1100mm
|
|
Weight
|
430kg
|

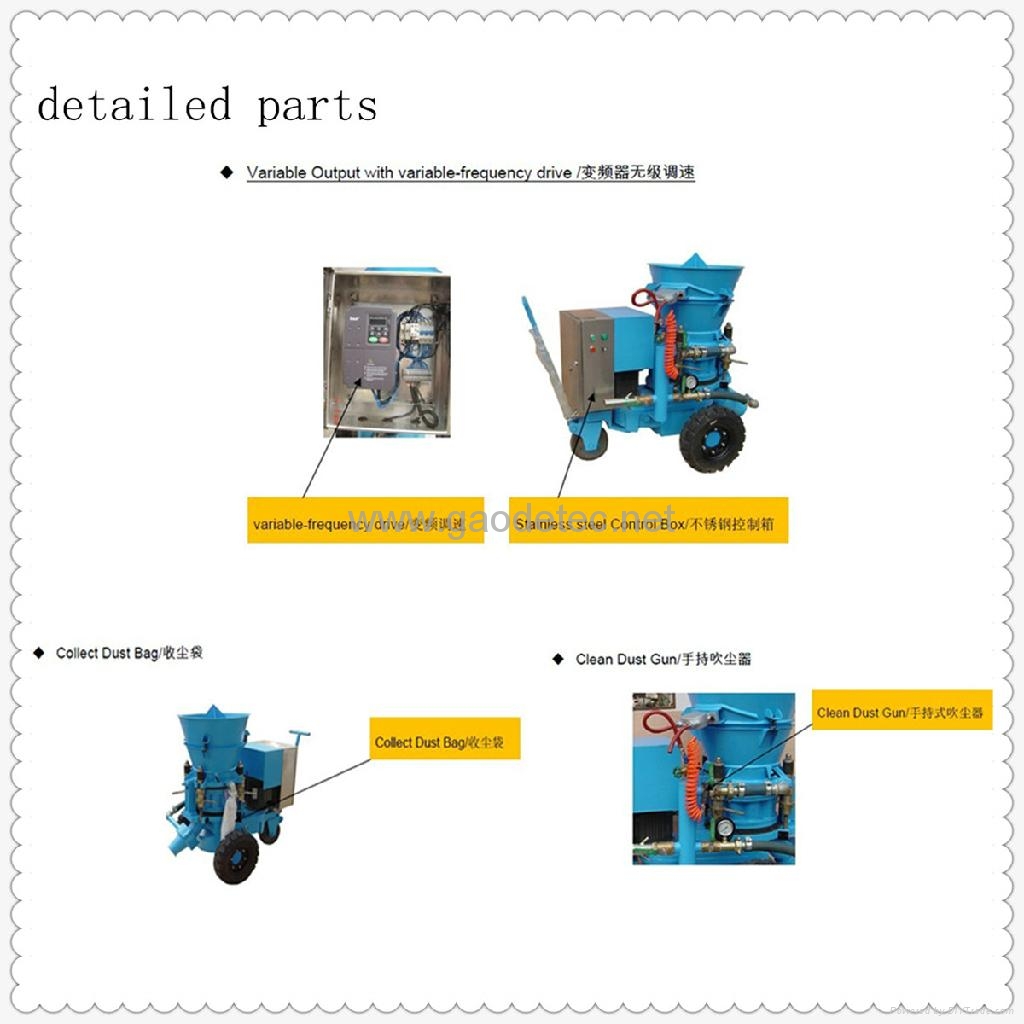

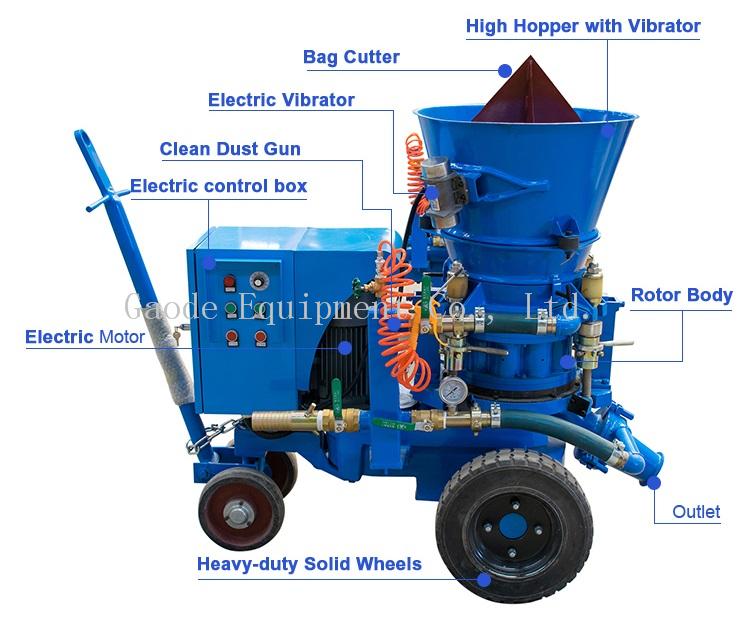

Features：
1. Variable Output with ABB variable-frequency drive

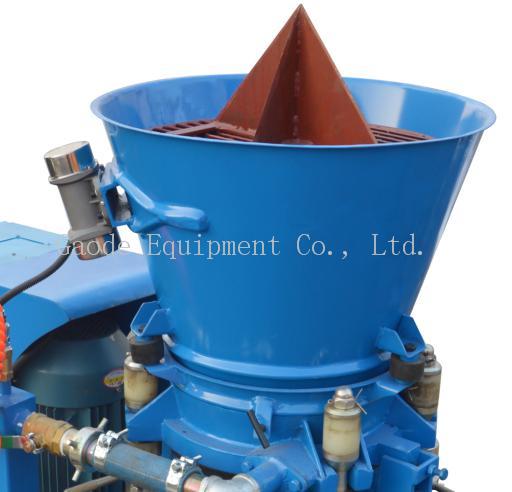

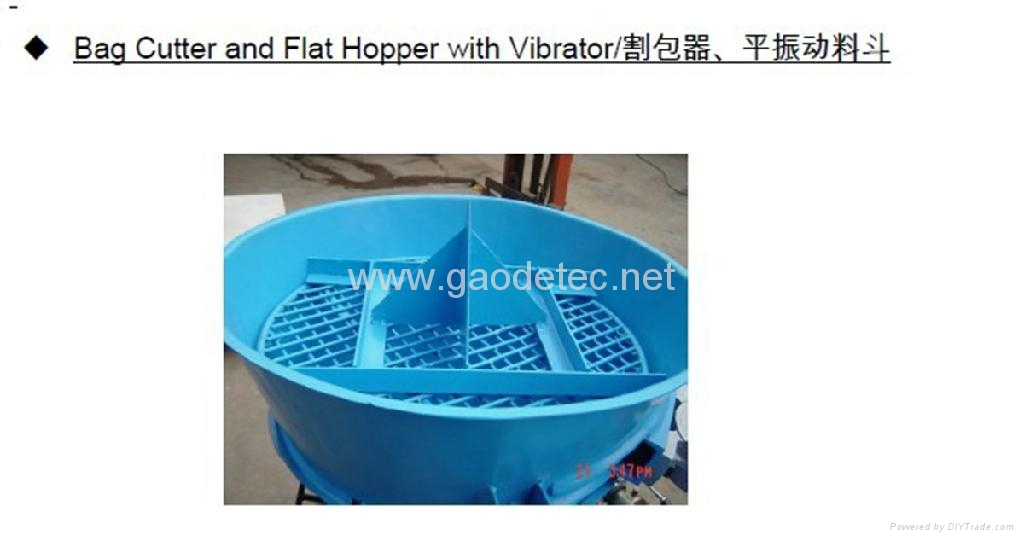

2. Bag cutter and flat hopper with vibrator
3. Collect dust bag
4. Clean dust gun
5. Heavy-duty solid wheels
6. Coulping and clamp
7. light weight nozzle
8. Blast rubber hose
Contact Supplier:
Many thanks for visiting our web, we can supply refractory shotcrete machine for you. Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do ?
2. What is the output do you need, 3m3/h, 5m3/h ?
3. Drive type mode? Do you want electric or air motor ?
4. Do you have any other special requirments for this machine ?
We can customize according to your requirements, just tell us the application of the product or the parameter information you need.
