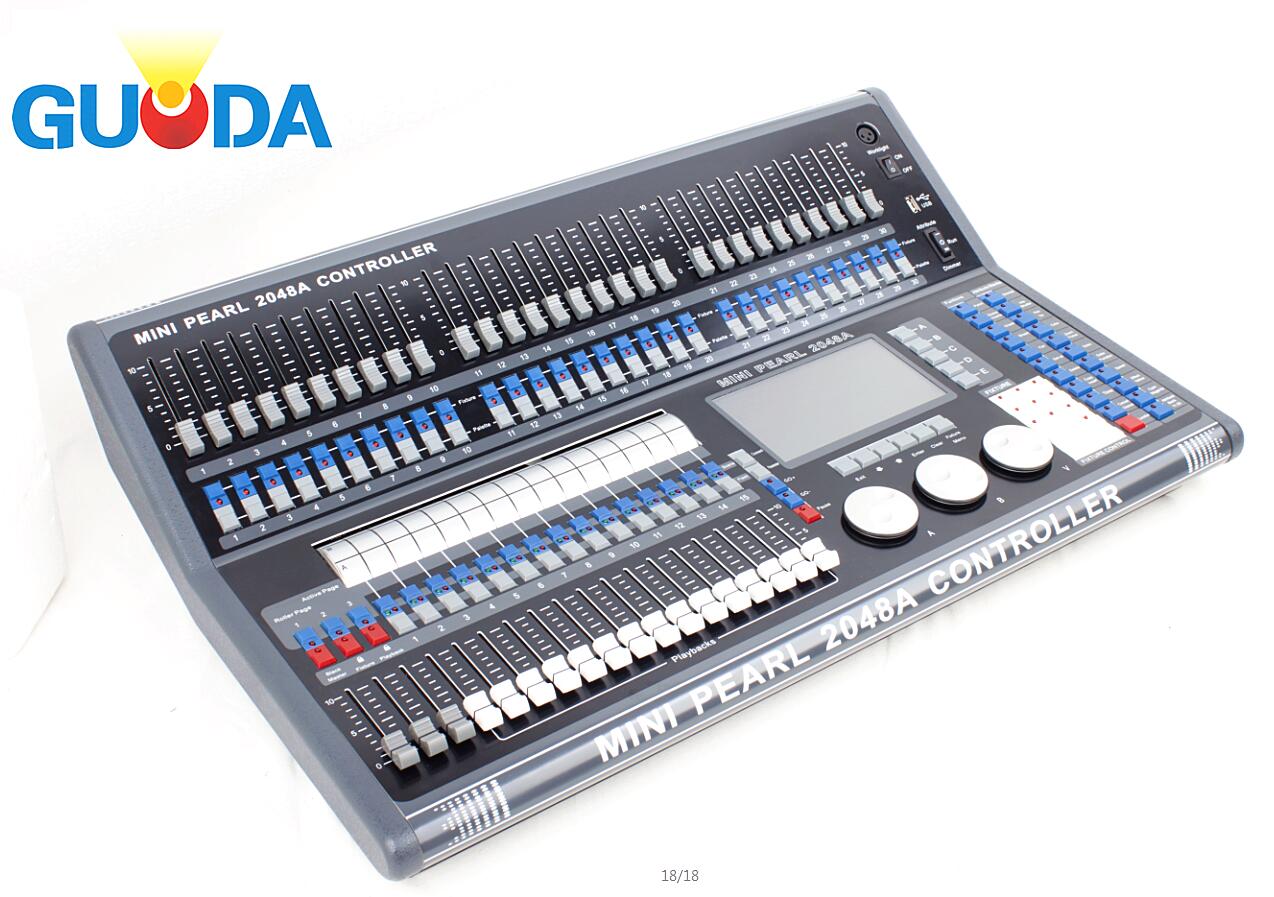

MINI PERL 2048

Technology Parameter
DMX512/1990 Standard,2048channels
7" colorful touch screen
Both Chinese/English language
Shape effect preset
R20 format fixture library

DMX512 / 1990 standard, up to 2048 DMX channels, optically isolated signal output.

maximum control 200 computers and 200 road lights dimming, use pearl light library

 built-in graphics trajectory generator, 235 built-in graphics, user-friendly graphical fixtures trajectory control, such as a circle, spiral, rainbow, chase and other effects. Graphics parameters (such as: amplitude, speed, interval, waves, direction, cycle way, marshalling) can be set independently.

 100 个 material, with four modes, more flexible.

 150 one playback scenes, scenes for storing multi-step, single-step collection of scenes and scenes. Multi-step scenario can store up to 600 steps.

backlit LED display, in English.

 off data retention.

 U disk backup and upgrade

 Professional gooseneck lights for outdoor performances use. (Optional)

 Power: AC100-240V / 50-60Hz

DMX512 channels: 2048

Mating number of fixtures: 200

Fixtures re-connected with the address code: Support

Lamps horizontal and vertical exchange: Support

Lamps channel inverting output: Support

Lamps channel sliding mode switch: Support

Each scanner maximum available control channels: Channel 40 main channel +40 trim

Fixture Library: R20 pearl light library support

The number of scenes that can be saved: 150

The number of scenes that can run simultaneously: 15

The total number of steps in a multi-step scenario: 600

Scene time control: fade in, fade out, LTP sliding

Graphics can be stored for each scene: 5

Fader scenes and dimming: Support

Interlock Scene: Support

Point Control scenarios: support

Graphics Generator: can generate Dimmer, P / T, RGB, CMY, Color, Gobo, Iris, Focus Graphics

Graphics can be run simultaneously Number: 8

Master Fader: Global total control

Now Black: Support

Dial to adjust the channel values: support

Fader adjust the channel values: support

Fader Dimmer: Support

U disk read: Support FAT32 format
