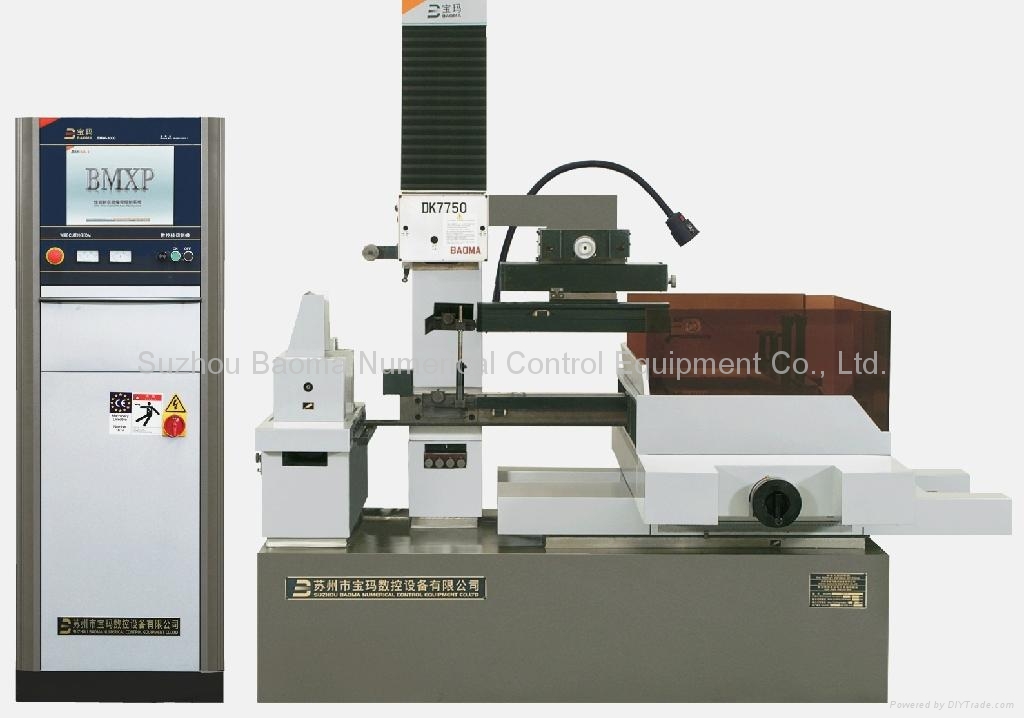

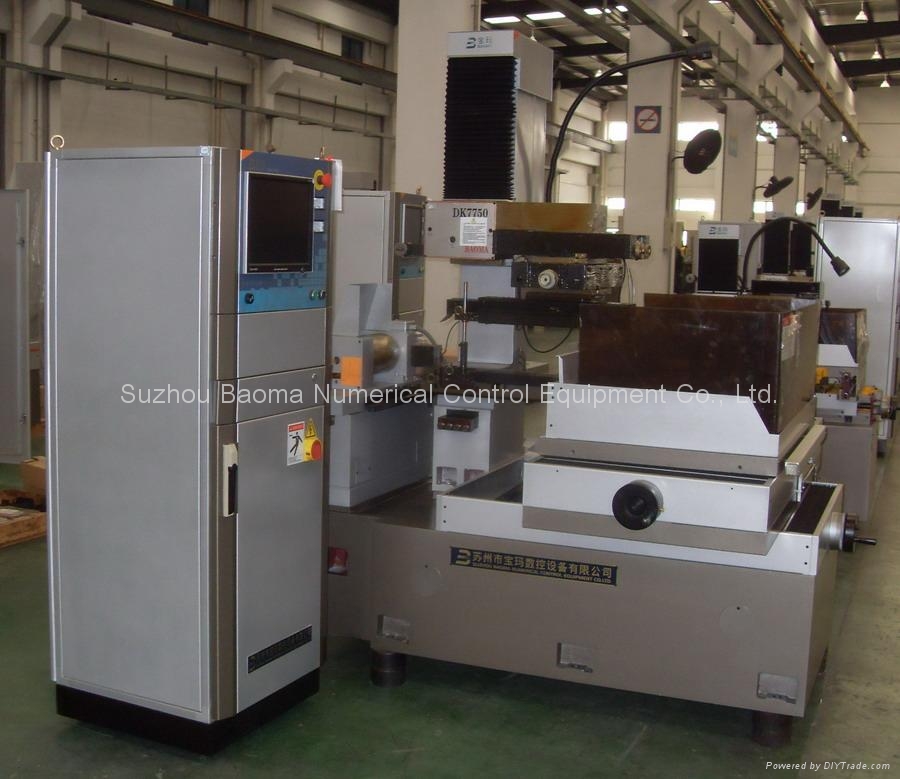

DK7750 Series Step Control CNC Molybdenum Wire Cut EDM Machine

描述

CNC Wire Cut EDM DK7750 Series
Parameters		Unit	DK7750B	DK7750D	DK7750F
Table Size (LxW)		mm	600×900
Table Travel (XxY)		mm	500×630
Max. Cut Height		mm	500	500	500
Max. Cut Taper		°/mm	0°	±3°/100	±30°/100
Max. Cut Speed		mm2/min	150
Precision	Octagon	mm	<=0.015	<=0.015	<=0.015
	Taper	mm		<=0.04	<=0.10
Max. Current		A	6
Roughness (Multi-Cut)		μm	<=1.5
Wire Diameter		mm	Dia. 0.15 -- 0.2
Wire Speed		m/min	5 -- 11
Table Load		Kg	800
Working Solution			BM2/BM4 Water Base Working Solution
Water Tank		L	56
Voltage			3N-380V/50Hz
Rated Power		KVA	3
Wire Frame			Adjustable
Dimension (LxWxH)		mm	1910×1547×2123
Packing Size(LxWxH)		mm	2115×1800×2250
Machine Weight		Kg	2300
Controller			BMW2008
