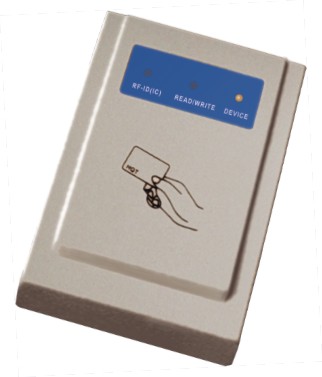

Model Number

125 KHz: 09B-ID     Mifare: 09B-Mifare

Never need to input card number by hand when issuing card to access control system but only present the card to this reader.

Features

l          Avoid manual input mistake

l          Save your time with more convenient and efficient

l          Free of installing driver, compatible with Windows98/2000/XP

l          Power on USB

Specification

·           Support proximity (EM-ID 125 KHz or 13.56Mhz Frequency) Card

·           5- 10cmProximityReadingRange

·           Standard USB to PC Communication Interface

·           Power on USB

·           -10 to 70 C Ambient Temperature

·           Less 100mA Working Current

·           Champagne or Black Color

·           DC 5V working Voltage or Power on USB

·           140*100 *30 mm

About Use

Connect USB data wire between Device and PC, after 30 seconds for testing the system, then punch the card, and execute the following steps in PC: Start----Program----Accessories----Notepad. Card Number will show in Notepad automatically Lines (No need press “Enter” for it)

Wire Connection

Plug USB wire into PC USB Port, the other port connect ReaderCommunicationPort.

Data Format: Digital Decimal Card Number Hex Card Number (Your customized Card Number Requirements is also available)
