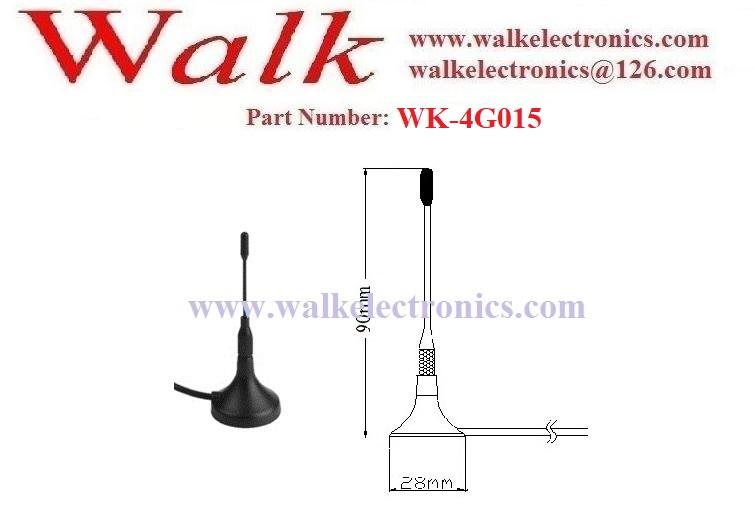

Part Number: WK-4G015

4G LTE Antenna Specification

Frequency Range

698-960/1710-2700MHz

V.S.W.R

2.0:1

Band Width

262/ 990MHz

Gain

3.0dBi

Polarization

Vertical

Radiation

Omni directional

Max Input power(W)

20

Impedance

50 ohm

Max wind speed

200km/h

Mechanical Specifications

Size

90mm high

Weight

＜200g

Cable

3m RG174 cable

Connector

SMA male straight

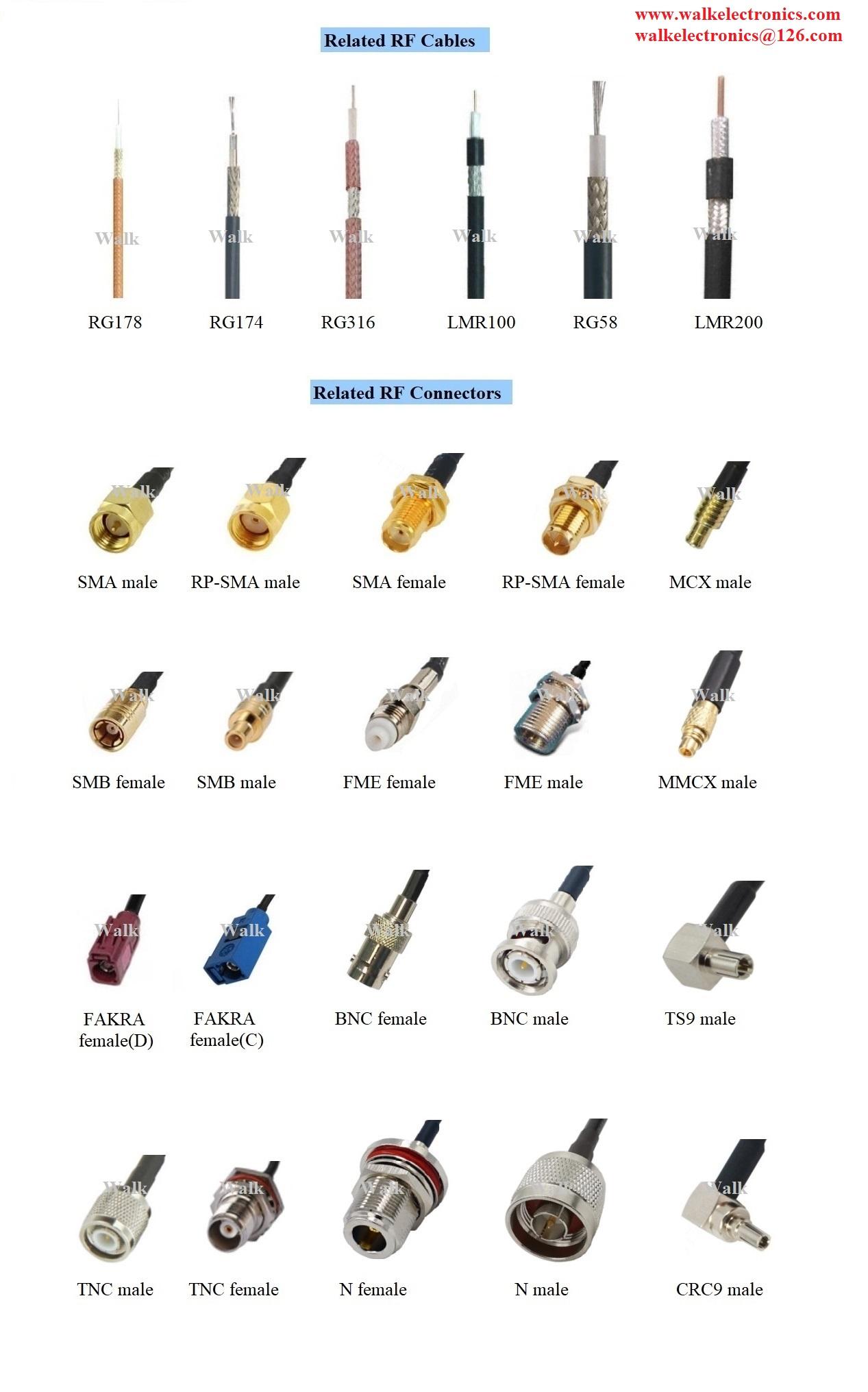

Other Cable

RG316, LMR100 or others

Other Connector

FME, FAKRA, MCX, TNC or others

Mounting

Magnetic or adhesive

Housing

Black ABS

Environmental Specification

Working Temp

-40℃~+85℃

Vibration

Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity

95%~100%RH

Waterproof

100% Waterproof
