Good quality Small Hole EDM Drilling Machine DB703A

Model: DB703A
Brand: BAOMA
Origin: Made In China
Category: Industrial Supplies / Machinery / Machine Tool
Label: EDM drilling machine , small hole drilling , EDM drilling
Price: US $1 / pc
Min. Order: 1 pc

现在联系 Add Inquiry

描述

High Speed Small Hole EDM DB703A

Parameters		BMD703
Worktable size(L×W)	mm	436x316
Table travel(X×Y)	mm	400x300
Z axis travel	mm	270+(300)
Max. drilling depth	mm	0 -- 270
Max. Drilling Speed	mm/min	60
Max. working current	A	30
Drill Diameter	mm	0.3 -- 3.0
Load of table	Kg	300
Working solution		Water/Saponification
Water Tank	L	25
Voltage		380V AC/50 Hz or 415V AC/50 Hz
Max. Power	KVA	3.5
Machine Dimension (LxWxH)	mm	1060×750×1700
Packing Size (LxWxH)	mm	1300x1040x2030
Machine Weight	Kg	600
Z Axis Controller type		Electric Motor
Digital Display		X,Y,Z axis
Function of setting depth		Yes

Price Terms:

FOB Shanghai

Payment Terms:

T/T or L/C at sight

Packing:

1 Case/Unit

Lead Time:

25days

Standards Certificate:

CE; ISO9001; ISO14001

Embed HTML Code:

Item	DB703A
Worktable size(L×W)mm	436×316
Table travel(X×Y)mm	400×300
Z axis travel mm	270+(300)
Max. drilling depth mm	0-270
Max. drilling speed mm2/min	60
Max re-track speed of spindle mm/min	320
Max. working current A	30
Electrode diameter	0.3-3.0
Load of table kg	300
Working solution	Water/Saponification
Working reservoir capacity L	25
Power supply	380V AC/50 Hz or 415V AC/50 Hz
Max. Power consumption KVA	3.5
Machine dimension mm	1060×750mm×1700
Package dimension mm	1300×1040×2030
Machine weight kg	600
Controller type	Automatic Z axis
Digital Display	X,Y,Z axis
Function of setting depth	yes
Function of group drilling	yes

The processing data in common use: This section is some technologic data according to technics experiments of normal prototype machines and technologic results. In particular process, Users can choose different parameter according to different orders to gain the process result which user wants. Conditions: Electrode: brass power net: 380AC

parameters material aperture		Ton(1)	Toff (2)	Ip (3)	Kc(12)	pressure(Mpa)	processingvoltage (V)	Rotation	processingcurrent (A)
0.3	45#	2	1	2	0	5-6	25	Y	3
0.3	chilled steel	2	1	2	0	5-6	25	Y	3
0.3	stainless steel	2	2	2	0	5-6	25	Y	3
0.5	45#	3	2	3	0	6	25	Y	5
0.5	chilled steel	3	2	3	0	6	25	Y	5
0.5	stainless steel	3	2	2	0	6	25	Y	4
1.0	45#	3	2	5	-	6	20	Y	12
1.0	chilled steel	3	2	6	-	6	20	Y	12
1.0	stainless steel	3	2	4	-	6	20	Y	10
2.0	45#	4-6	2	6	=	6	20	Y	18
2.0	chilled steel	4-6	2	6	=	6	20	Y	18
2.0	stainless steel	5	2	6	=	6	20	Y	16
3.0	45#	5-7	2	8	=	6	20	Y	25
3.0	chilled steel	5-7	2	8	=	6	20	Y	25
3.0	stainless steel	7	2	7	=	6	20	Y	23

Control System:

ZNC

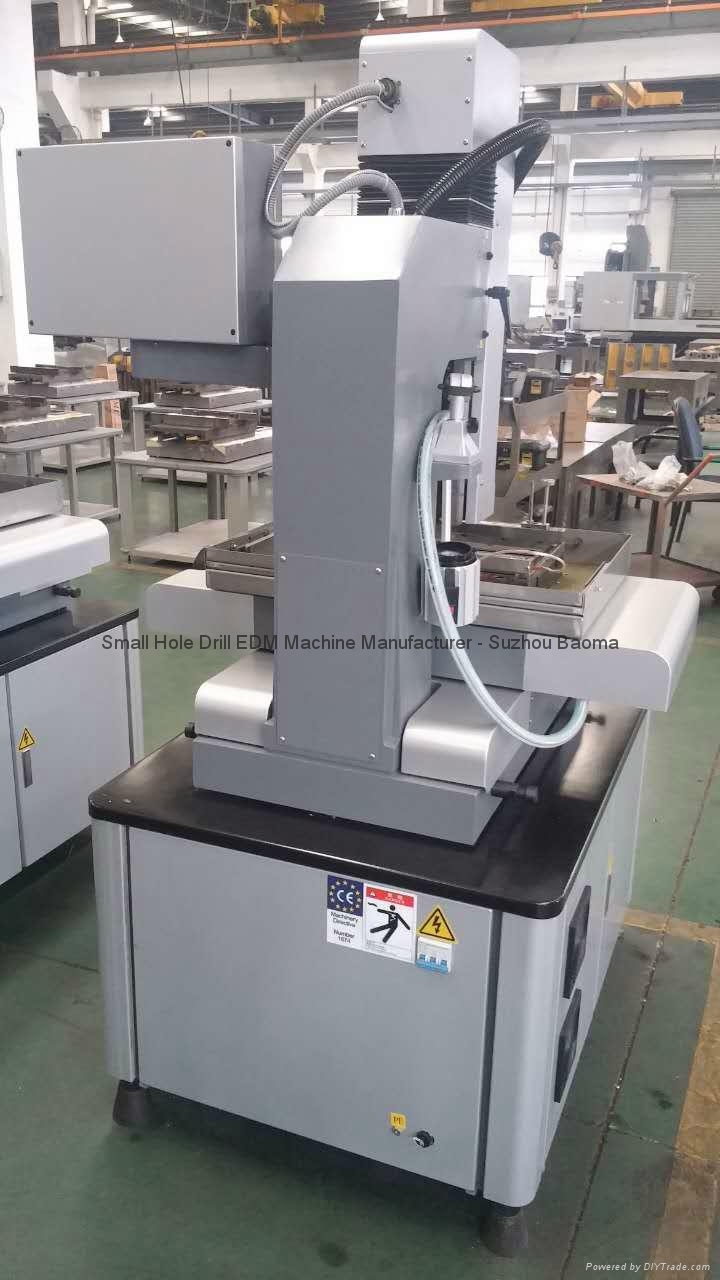

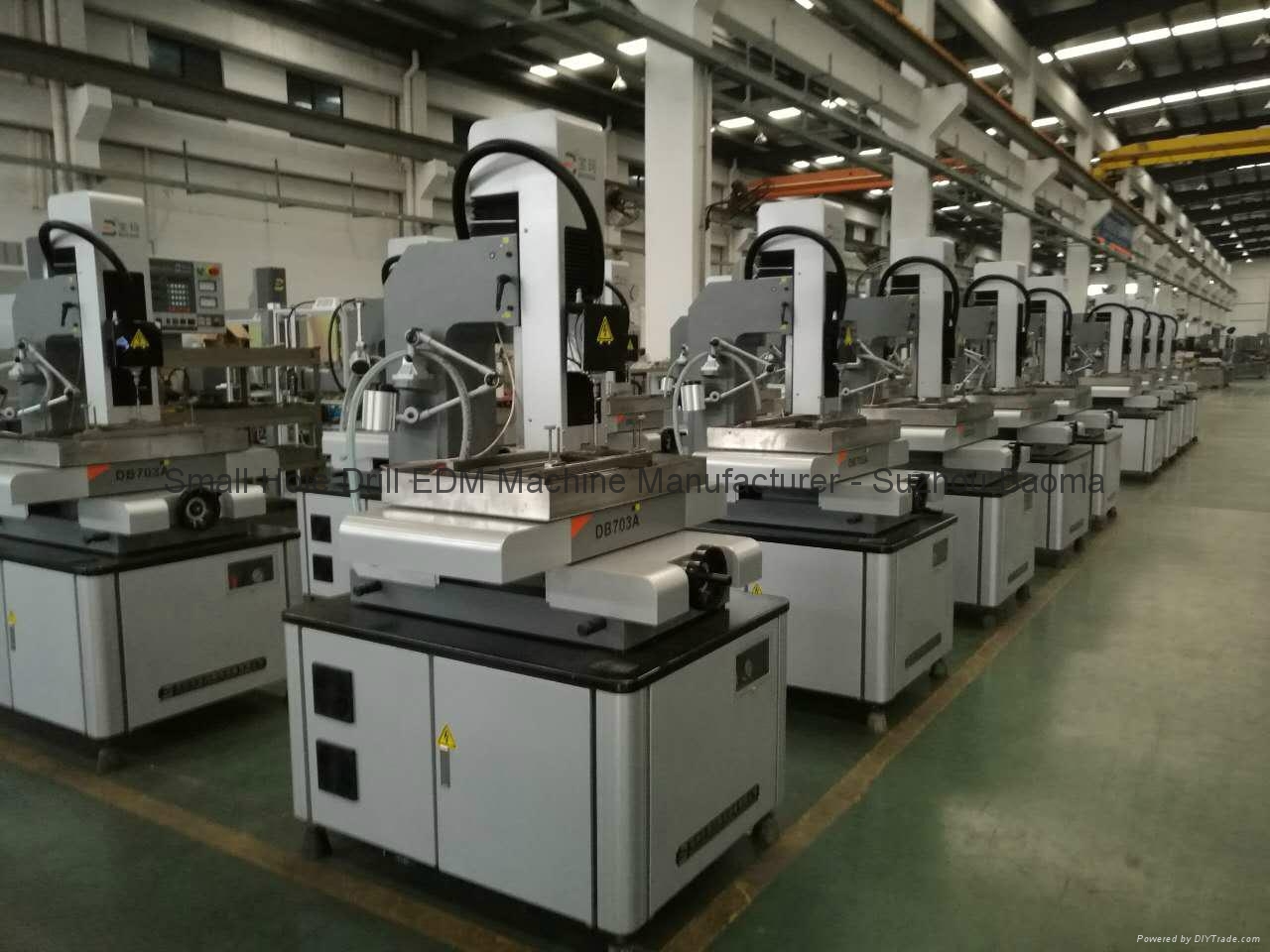

Product Image

click for larger image

Img 1

Img 2

Img 3

Img 4
