Product Use

l  Making different kinds of soft ice cream, such as soft ice cream with low fat or without fat, creamy ice cream, yongurt ice cream, etc. Making soft ice cream of two different flavours and one mixed flavour.

Feature

Powerful refrigeration compacity, Environmental refrigerant

Maximum configuration:8400BTU/hr

Various Configurations

l  Single/Double Production Compressors

l  Independent precooling compressor to cool ice cream material

l  Air pump system

l  Jam pump with freezing function- - making ice cream with different tastes

Volume

l  Hopper  2X10 L

l  Freezing cylinder 2X2.1 L

Control

l  Automatic electronic controlling system, working state indicator，ice cream counter,  failure diagnosis and protection.

Output

70 L/H

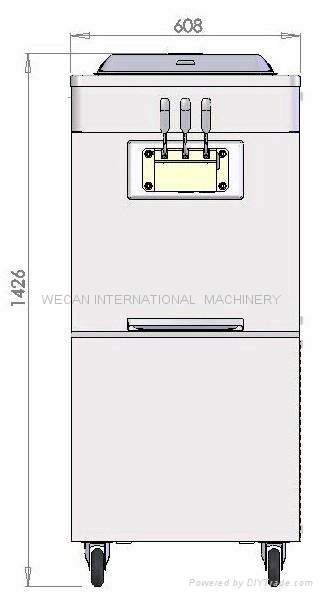

External dimensions  652 X 770 X 1465(mm)      Net Wisght:  225kg

Power source

220－240V/50Hz  Rated power 2.5kw～4.5 kw  Maximum current 13A～29A

208—230 V/60Hz

Cooling      wind cooling

Suitable ambient temperature   38℃

Composition

Single production compressor + precooling compressor

Double production compressors + precooling compressor①

Double bigger production compressor + precooling compressor①

Pre-cooling

Air Pump

△

△

△

Jam Pump

△

△

△

Refrigerant

R404a

R404a

R404a

Main Power

220－240V/50Hz，208—230 V/60Hz

Rated Output

2.5kw/2.7kw

3.2kw/3.5kw

4kw/4.3 kw

Electric Current

13/14A

16/17A

26 A /28 A

Night Time program

●

●

●
