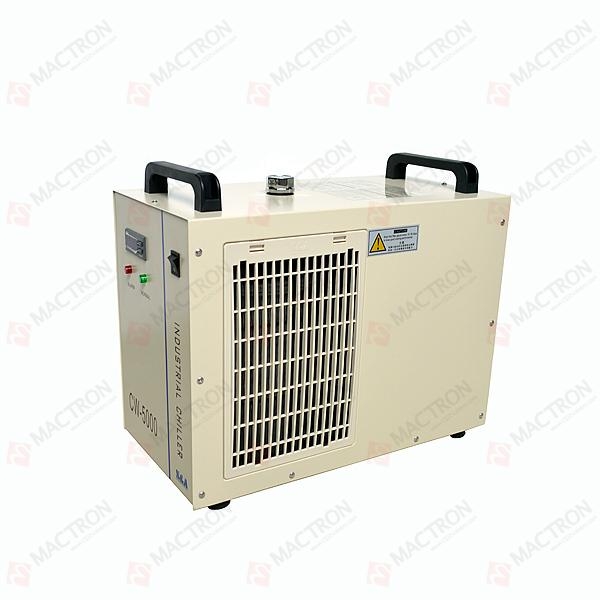

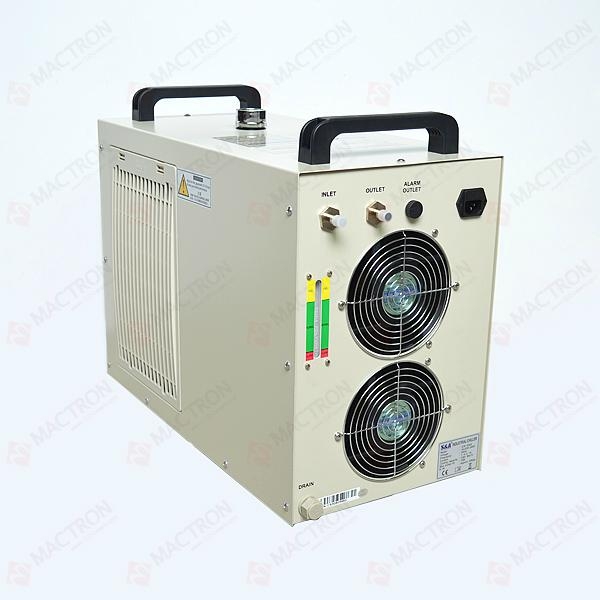

Co2 Laser Water Chiller CW5000BG with 220V, 60Hz
1. Features of Co2 Laser water chiller CW-5000AG:
1) Convenient for installation and operation
2) Integrated electronic control, large digital displays
3) Single temperature, single control
4) Low flow alarm
5) Over heat and over low temperature alarm
6)One-stop automatic intelligent temperature control: in different environment, user does not need to change setting due to it will automatically switch
to appropriate operating temperature.
2. Specification of Co2 Laser water chiller:
|
Model
|
CW-5000AG
|
CW-5000BG
|
CW-5000DG
|
|
Voltage
|
AC 1P 220V
|
AC 1P 220V
|
AC 1P 110V
|
|
Frequency
|
50Hz
|
60Hz
|
60Hz
|
|
Current
|
1.4~2.1A
|
3.5~5.6A
|
|
Compressor power
|
0.295 KW
|
0.38KW
|
0.305KW
|
|
0.40HP
|
0.52HP
|
0.41HP
|
|
Refrigerating capacity
|
2361Btu/h
|
2999Btu/h
|
2866Btu/h
|
|
0.692KW
|
0.879KW
|
0.84KW
|
|
595Kcal/h
|
756Kcal/h
|
722Kcal/h
|
|
Refrigerant
|
R-134a
|
|
Refrigerant charge
|
300g
|
320g
|
280g
|
|
Precision
|
±0.3 temperature
|
|
Reducer
|
Capillary
|
|
Protection
|
Overcurrent protection for compressor, flow alarm, over temperature alarm
|
|
Pump power
|
0.03KW
|
|
Tank capacity
|
6L
|
|
Inlet and outlet
|
External Φ10mm brass connector
|
|
Max. lift
|
10 M
|
|
Max. flow
|
10 L/min
|
|
N.W
|
26 Kgs
|
|
G.W
|
31 Kgs
|
|
Dimension
|
55 X 28 X 43 cm (L x W x H)
|
|
Package dimension
|
72 X 44 X 62 cm (L x W x H)
|
