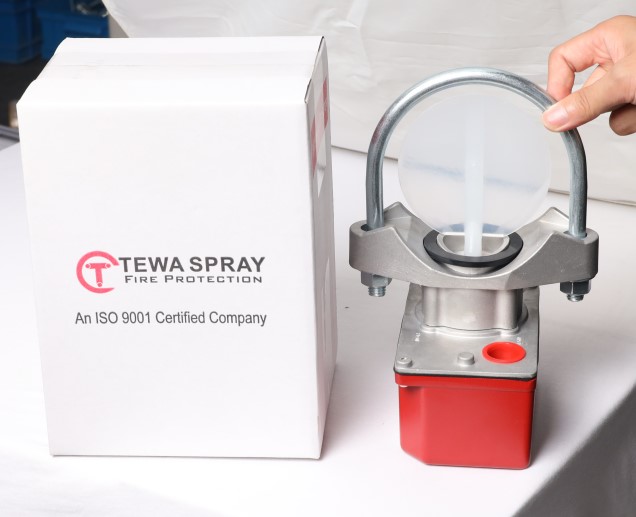

water flow detector
  • water flow switch: TEWA SPRAY
描述

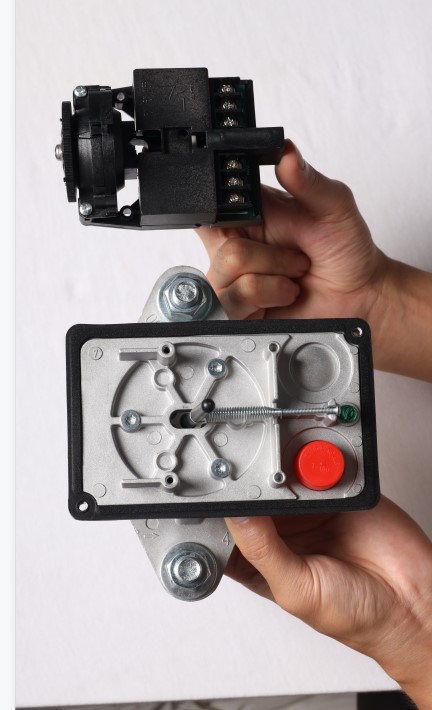

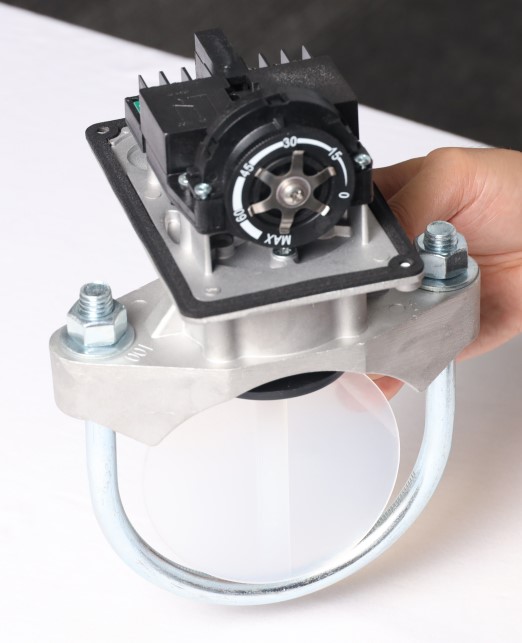

TEWA SPRAY FIRE PROTECTION TECHNOLOGY CO.,LTD. The water flow detector  shall be installed on system piping as designated on the drawing and/or as specified herein. Water flow indicators shall mount on any clear pipe span of the appropriate normal size, either a horizontal or vertical pipe. The indicators shall have a sensitivity in the range of 4-10 gallons per minute and a static pressure rating up to 450psi for 2”-8” (50mm thru 200mm) pipes. The indicator shall respond to water flow in the specified direction after a preset time delay that is field adjustable. The retard structure shall be a sealed mechanical pneumatic unit with visual time delay adjustment.

Rating Pressure:

Up to 450PSI (3.1MPa)

Flow Sensitivity:

4-10GPM (15.0-37.5L/min)

Maximum Surge:

18FPS (5.5m/s)

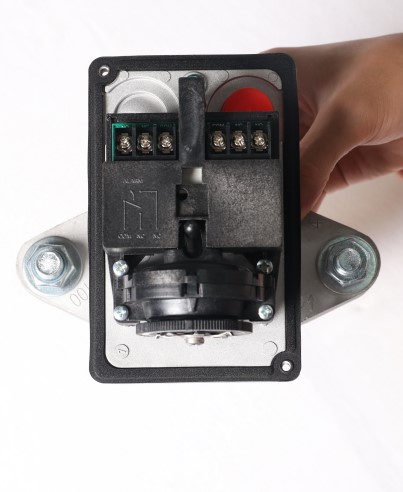

Contact Ratings:

Two sets of SPDT (Form C)



2.0Amps at 24 VDC

Enclosure Rating:

NEMA 4- suitable for indoor/outdoor use

Conduit Entrances:

Two opening for 1/2" conduit



One open, one knock-out type

Compatible Pipe:

Steel water pipe, schedule 10 through 40

Service Use:

Automatic Sprinkler: NFPA-13



One or Two Family Dwelling: NFPA-13D



Residential Occupancies up to 4 stories: NFPA-13R



National Fire Alarm Code: NFPA-72

Warranty:

3 Years
